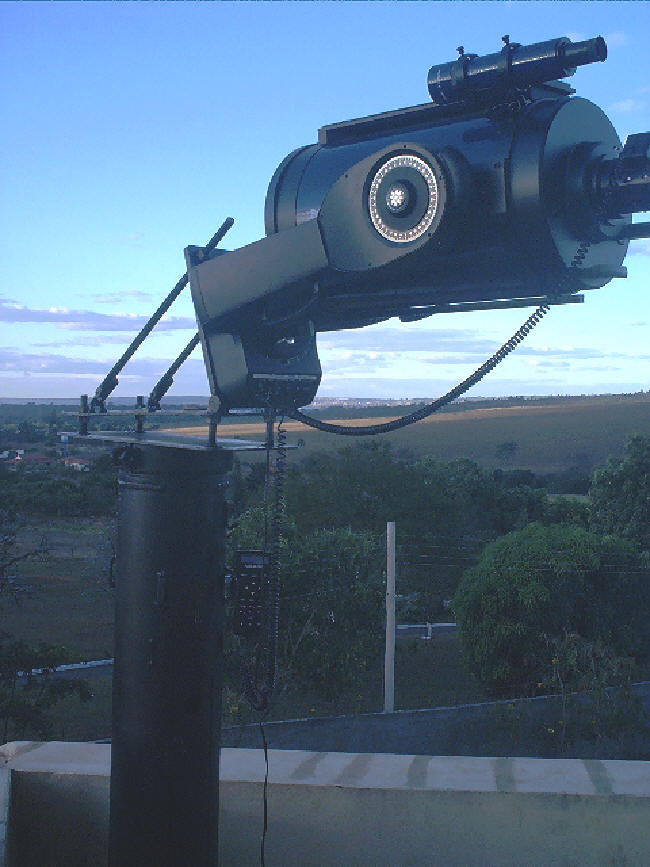

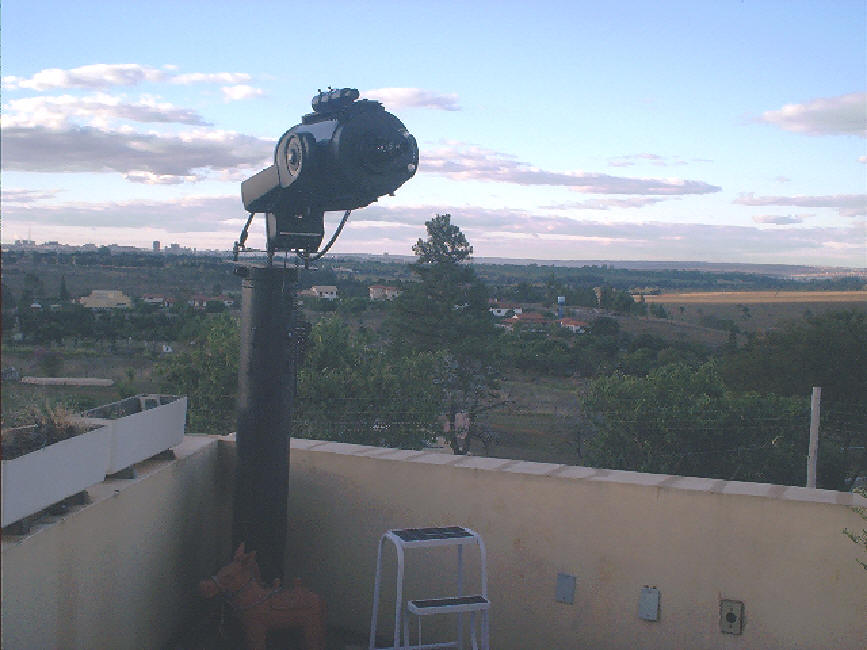

Aqui voce pode ver algumas imagens do telescópio no seu pier, em meu terraço, com vista para Brasília.

Here you can see some photos of my LX200GPS 10" and my pier, with a beatiful view of downtown Brasilia.

Fotos dos elementos internos do drive de RA.

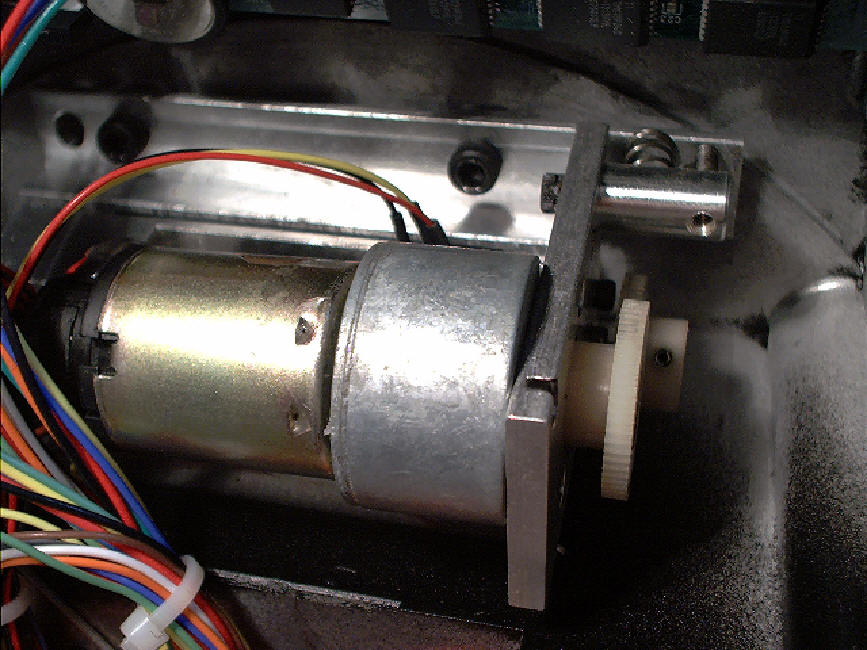

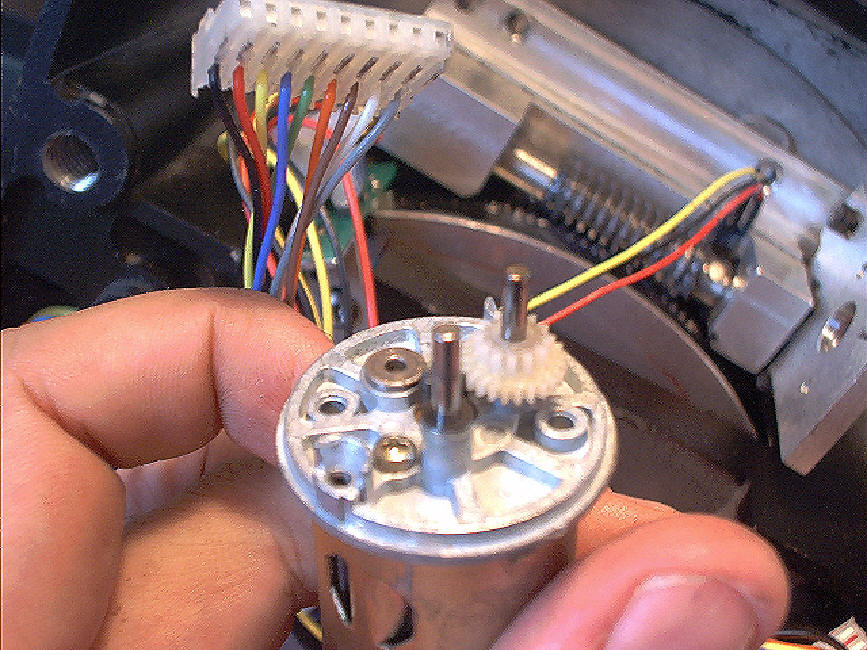

Internal RA drive system with dismantled gearbox. Three problems were detected. The first can be seen in the first photo below, where the black wire was close to worm gear and caused jumps as if a tooth were broken.

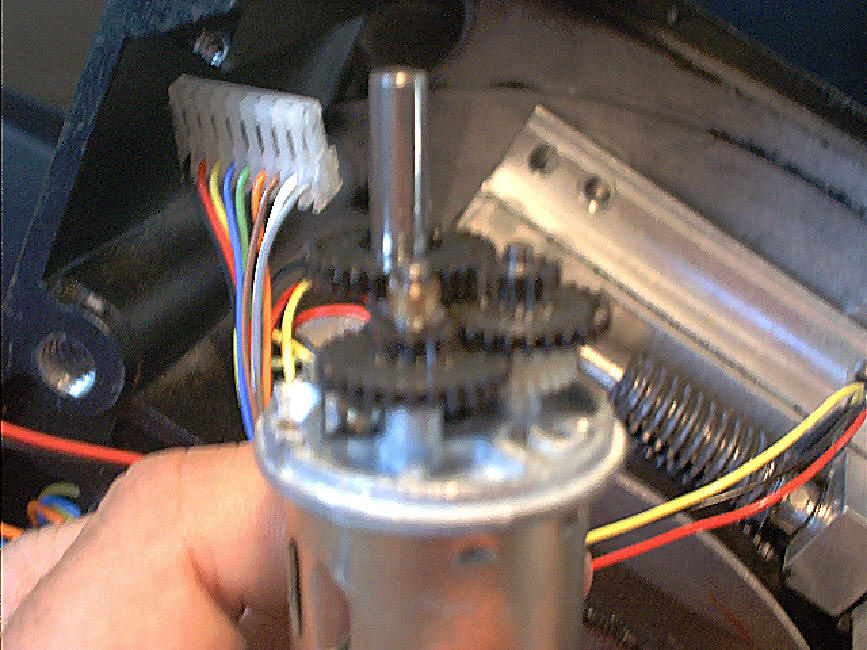

The second problem was a loose lock of transfer gears causing backlash.

The third problem was a TWO loose screws into the gearbox causing motor to shake.
